Durisol Transparent Ready-Fit Panels

Noise Walls - Transparent Noise Barriers

Framed transparent panels for easy drop-in installation, adaptable to ground or structure-mounted systems.

path

Durisol’s transparent ready-fit panels carry a 30-year warranty and will not fade or discolor over time. Fully fabricated when delivered to site, our framed panels are designed with flexibility in mind. Designers get the benefit of a tall noise wall, without closing-in a space.

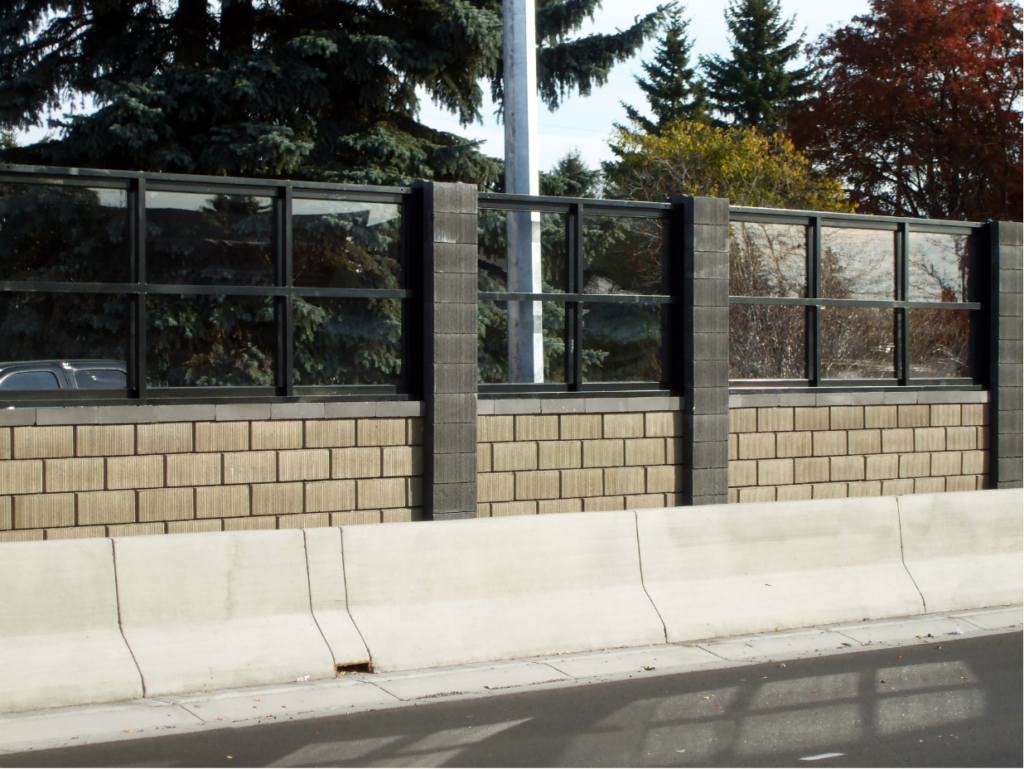

The ready-fit panels are commonly integrated with our Durisol precast panels, but are compatible to other precast concrete structures where a section of the wall requires more light and unobstructed views.

Applications

  • Roads and highways
  • Commercial and residential developments
  • Parks and community centres
  • Railways
  • Airports

NOISE REFLECTIVE

STC 32

LIGHT TRANSMISSION

92%

PANEL THICKNESS

15-25mm

PANEL WEIGHT

6 psf

Main Features and Benefits

VISIBILITY

  • Allows businesses to remain visible and scenic views accessible to residential neighborhoods.

IMPACT STRENGTH

  • Built to withstand debris from vehicle tires and hurricane force winds.

SELF-CLEANING

  • Hard non-porous surface stays clean with rain exposure.

FLEXIBILITY

  • Formed and fabricated into any shape.

EASY INSTALL

  • Our lightweight system requires minimal installation equipment and crew.

Design Details at a Glance

PANEL WEIGHT

  • Typical panel weight of 6psf

POST SPACING/PANEL SIZES

  • Standard panels are sized for 10’, 12’, 15’, and 16’ post spans with heights ranging from 3’ to 8’ high. Panels are often stacked to achieve taller heights, desired aesthetics, and overall efficiency. Panels are available in several additional custom sizes up to 24’ post spans and in panel heights of up to 10 feet.

POST TYPE

  • Adaptable for use with concrete columns, pilasters or structural steel H-posts.

NOISE REFLECTIVE

  • STC 32 Db or greater.

LIGHT TRANSMISSION

  • 92% light transmission.

COLOR OPTIONS

  • Available in colorless, frosted and 10 colors. Custom colors available upon request.

GRAFFITI RESISTANCE

  • Graffiti is removed easily and quickly involving a spray-on application.

BIRD GUARD

  • Bird deterrent markings are available.

TESTING

  • ASTM D 1003 & E 313 - Industry leading 30-year warranty against yellowing despite decades of exposure to sunlight and other elements.
  • ASTM E90 STC Rating – 32-36 dB noise reduction dependent on sheet thickness.
  • ASTM EN 1794-2 for fragment retention - Optional use of integral filaments to provide fragment protection and enhanced safety.

Resources

Durisol Transparent Ready-Fit Panels Product Guide

Download

Interested in Durisol Transparent Ready-Fit Panels?

Why us?

The Durisol Acrylite Soundstop MASH TL-4 System is key to keeping our bridges and our drivers safe, while also reducing noise for the surrounding community.

We are the leading solutions provider from conception to installation. As a trusted partner, our Salespeople, Engineers and Project Managers are here to assist you through the entire project.
